INSECT SCREEN

High-quality Pleated Mosquito Screens from RADIUS are made to keep mosquitoes, insects, bees, bugs, and other airborne pests out of your house or place of business without interfering with the outside view or airflow.

Technical Details

1. Pleated Mesh

  • Material : 100% Polyester
  • Colour Options : Grey & Black
  • Pleat size : 16 mm & 20 mm .
  • Fire Resistance : 100%
  • Fire-retardant and non-flammable

2. Aluminium Sections

  • Manufactured using
  • Aluminium Alloy 6063-T6
  • Minimum section thickness: 1.2 mm

3. Powder Coating

  • Colour: RAL 9016 (matched to UPVC shade)
  • Coating Thickness: 60–70 microns
  • Powder Quality: Pure Polyester

Pleated Mosquito Net for Windows

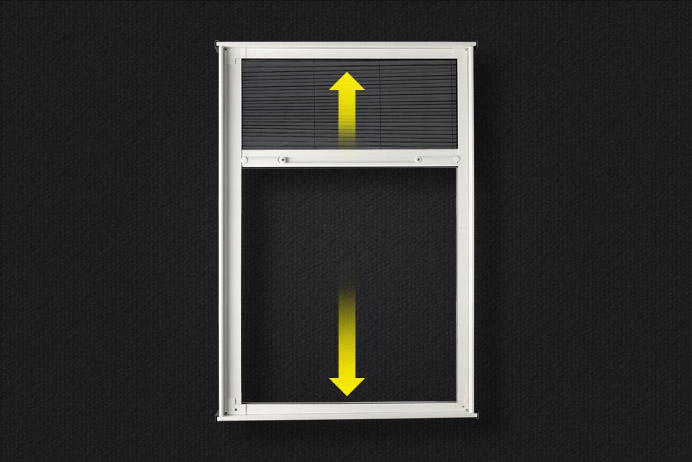

FR 22 | Vertica

Max. Width : 1200
Max. Height : 1800

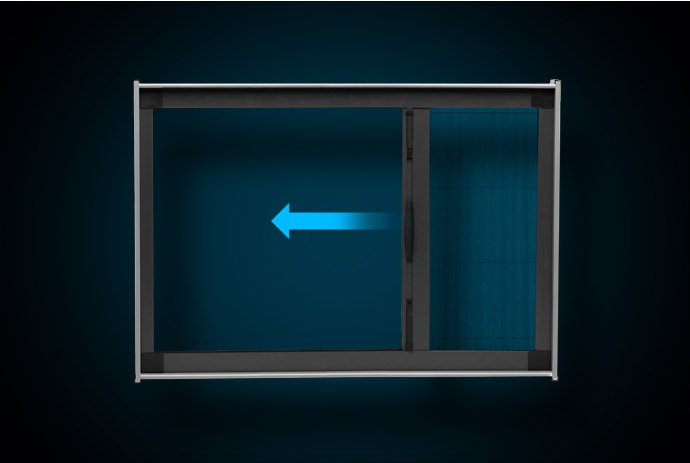

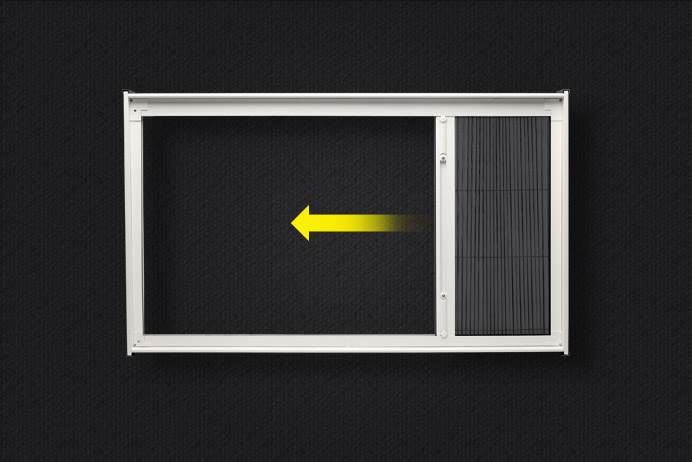

FR 22 | Uno

Max. Width : 2500
Max. Height : 3000

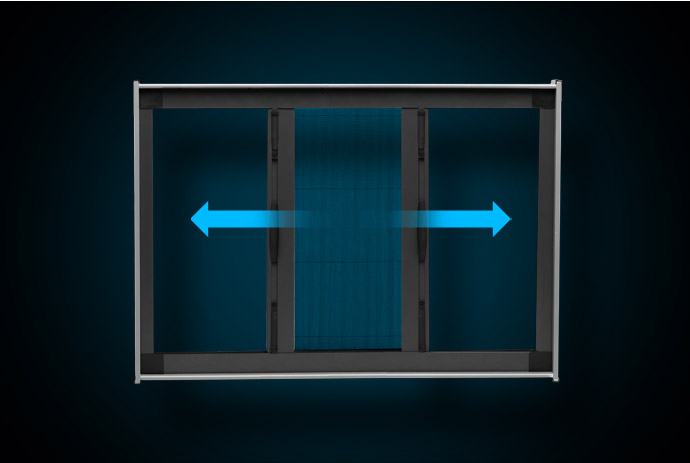

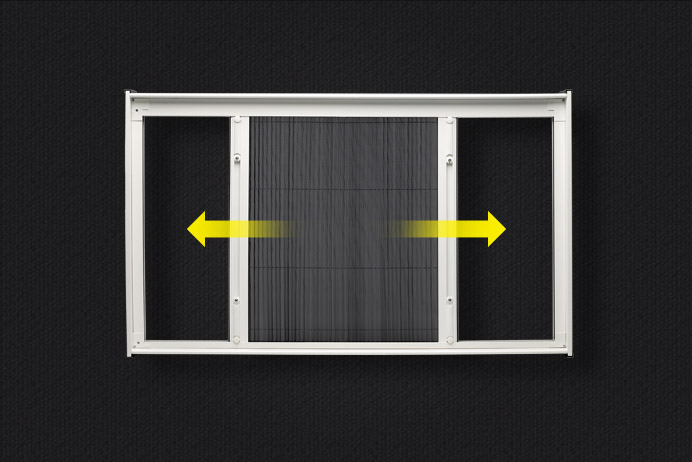

FR 22 | Centra

Max. Width : 2500
Max. Height : 3000

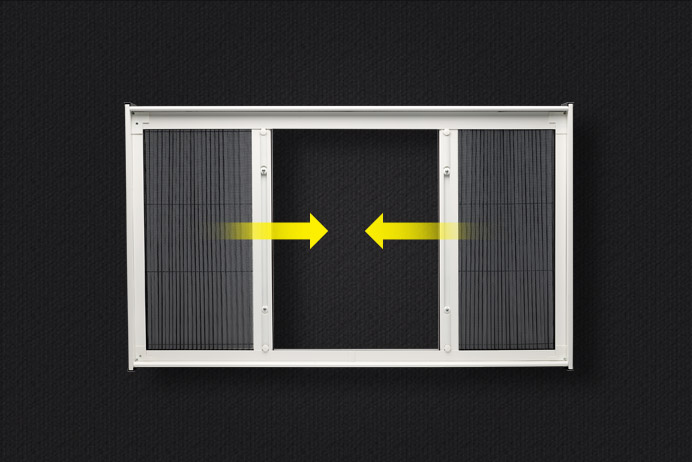

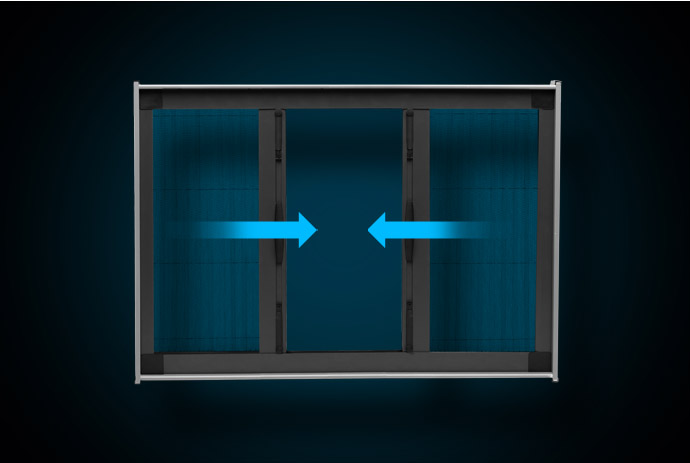

FR 22 | Proxima

Max. Width : 6000
Max. Height : 3000

Heavy Duty Pleated Insect Screens

FR 29 | Vertica

Max. Width : 1500
Max. Height : 2100

FR 29 | Uno

Max. Width : 4500
Max. Height : 3000

FR 29 | Centra

Max. Width : 4000
Max. Height : 3000

FR 29 | Proxima

Max. Width : 9000
Max. Height : 3000
